Pile Load Testing Solutions by Iconic Engineering Limited In Bangladesh

Introduction to Pile Load Testing:

Pile load testing is a fundamental procedure in Geotechnical Engineering used to evaluate the load-carrying capacity and structural integrity of deep foundations, such as piles and drilled shafts. In densely populated countries like Bangladesh, where infrastructure development is rapidly expanding, ensuring the reliability and safety of foundations is paramount. Piles are essential for supporting structures like high-rise buildings, bridges, and industrial facilities, where they transfer loads from the superstructure to deeper, more stable soil or rock layers. The primary goal of pile load testing is to validate design assumptions, and construction quality, and ultimately ensure the safety and performance of the foundation under various load conditions.

Globally in Infrastructure development pile load testing initiative aims to comprehensively assess the load-bearing capacity of piles across diverse geographic regions and soil conditions. With an approximate annual budget ranging from several million to tens of millions of dollars, this initiative involves conducting static and dynamic load tests in various environments, from coastal to urban settings. Future scopes include integrating advanced sensor technologies for more precise testing, developing predictive models to forecast pile performance under different environmental conditions, and influencing global standards for pile design. This initiative not only enhances construction reliability but also contributes to the evolution of engineering practices on a global scale.

Infrastructure development in Bangladesh is crucial for its economic and societal progress. The country is focused on improving connectivity and modernizing key services like transportation, water resources, urban development, and digital infrastructure. With significant government funding, international aid, and private-sector partnerships, Bangladesh aims to drive economic growth, raise living standards, and ensure sustainable development. These efforts enhance resilience and global competitiveness.

Pile testing is crucial for ensuring stability, safety, and efficiency in Bangladesh's infrastructure. It assesses pile load-bearing capacity for bridges, buildings, and other projects, under varied soil conditions like riverine, coastal, and urban environments. This data optimizes designs, ensures structural integrity, and mitigates risks, supporting resilient, sustainable infrastructure networks and Bangladesh's development goals effectively. In Bangladesh main users of this survey are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department, DESCO, NESCO, EGCB, PGCB, BPDB and other private industry like construction company, Real state company, consultancy firm, ETP contractor etc.

Iconic Engineering Ltd. in Bangladesh plays a pivotal role in pile testing by ensuring the integrity and safety of critical infrastructure projects across the country. Specializing in comprehensive pile testing services, Iconic Engineering Ltd. employs state-of-the-art technologies and methodologies to assess the load-bearing capacity and performance of piles under diverse soil conditions. By delivering accurate and reliable data, Iconic Engineering contributes to optimizing foundation designs, enhancing construction efficiency, and minimizing risks associated with structural failures. Moreover, by adhering to global standards and leveraging advanced technologies, Iconic Engineering bridges the technology gap in pile testing practices in Bangladesh.

Types of Pile Load Tests:

• Pile Load Test instrumentation using strain gauges
• Crosshole Sonic Logging Test (CSL)
• Sonic Borehole Measurement Test (SBMT)
• Plate Load Test (PLT)
• Pile Integrity Test (PIT)
• High-Strain Dynamic Testing (HSDT)
• Rapid Load Testing and
• Static Load Testing: (Compression test, Tension Test and Lateral Load test)

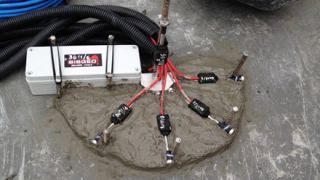

1. Pile Load Test Instrumentation Using Strain Gauges:

Pile load test instrumentation using strain gauges is a method to directly measure the strain and deformation characteristics of piles under applied loads. Strain gauges are affixed to the pile surface at predetermined locations to monitor and record minute changes in strain as the pile undergoes loading. This method provides engineers with valuable insights into the structural behavior and load-bearing capacity of the pile.

Test Procedure:

• Instrumentation Installation: Strain gauges are carefully installed on the surface of the pile at specified intervals using adhesive or welding techniques. Calibration of strain gauges is performed to ensure accurate measurement sensitivity.
• Load Application: Hydraulic jacks or reaction frames are used to apply incremental loads to the pile. During load application, strain gauges continuously measure the strain distribution along the pile length.
• Data Acquisition: Strain measurements from the gauges are recorded using electronic data acquisition systems. These systems capture real-time data, including strain levels, load increments, and corresponding pile deformations.
• Analysis: The collected data is analyzed to generate load-strain curves, which depict the relationship between applied loads and pile strains. Engineers interpret these curves to determine the ultimate load capacity, elastic and plastic deformations, and overall pile behavior under various loading conditions.
• Reporting: A detailed report is compiled, documenting the instrumentation setup, test procedure, observed results, and conclusions drawn from the analysis. Recommendations for design improvements or construction modifications may be included based on the findings.

Time (seconds): Represents the duration of the test from the beginning.

Strain Gauge 1, 2, 3 (µε): The readings from three different strain gauges installed at different points on the pile. µε (microstrain) is the unit of measurement for strain, which indicates the deformation of the material in micro strain units.

Advantages:

• Provides direct measurement of pile strain and deformation.
• Allows for accurate assessment of load-bearing capacity and structural behavior.
• Useful for validating design assumptions and construction quality.

Applicable Area:

This method is widely applicable in high-rise buildings, bridges, and industrial structures where precise measurement of pile performance is crucial.

In Bangladesh main user of this survey are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Continued advancements in strain gauge technology aim to enhance measurement accuracy and efficiency, further improving the reliability of pile load testing.

Standards: ASTM D1143/D1143M - Standard Test Methods for Deep Foundations Under Static Axial Compressive Load provides guidelines for conducting pile load tests using strain gauges.

2. Crosshole Sonic Logging Test (CSL):

Cosshole Sonic Logging (CSL) is a non-destructive test method used to evaluate the integrity and quality of concrete within drilled shafts and cast-in-situ concrete piles. This method utilizes sonic waves transmitted between access tubes embedded in the pile to detect anomalies or defects such as voids, cracks, or inadequate concrete consolidation.

Figure: Field Data Acquisition for CSL

Test Procedure:

• Tube Installation: Access tubes are installed in the pile during construction, typically in a triangular or square pattern. These tubes serve as paths for transmitting and receiving ultrasonic signals.
• Signal Transmission: Ultrasonic pulses are transmitted through one tube and received by sensors in adjacent tubes. The travel time and amplitude of the waves are recorded and analyzed for variations that indicate anomalies within the concrete.
• Data Acquisition: Electronic data acquisition systems capture and process the signals received from multiple paths within the pile. Advanced signal processing algorithms filter noise and interpret data to create detailed images of the concrete condition.
• Analysis: Engineers analyze the CSL data to identify and locate potential defects or variations in concrete quality. Interpretations may include determining concrete continuity, estimating concrete strength, and assessing overall pile integrity.
• Reporting: A comprehensive CSL report is prepared, presenting findings on concrete condition, identified defects, and recommendations for repair or further investigation if necessary.

Figure: CSL data collection From Project

Advantages:

• Non-destructive method for assessing concrete quality and integrity.
• Provides detailed insights into internal conditions of deep foundations.
• Enables early detection of potential construction defects or material inconsistencies.

Applicable Area: CSL is widely used in critical infrastructure projects such as bridges, dams, and high-rise buildings in Bangladesh to ensure the reliability and longevity of deep foundation structures. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Ongoing research focuses on enhancing CSL technology with improved signal processing algorithms and automated data interpretation tools, further increasing accuracy and efficiency.

Standards: ASTM D6760/D6760M - Standard Test Method for Integrity Testing of Concrete Deep Foundations by Ultrasonic Crosshole Testing provides guidelines for conducting CSL tests to assess concrete integrity in deep foundations.

2. Sonic Borehole Measurement Test (SBMT):

The Sonic Borehole Measurement Test (SBMT) is a non-destructive method used to assess the integrity and quality of concrete within both driven and drilled piles. It utilizes sonic waves transmitted through the pile shaft to detect anomalies or variations in concrete continuity, which are crucial for evaluating pile structural integrity.

Test Procedure:

• Probe Installation: Sonic probes are installed in the pile shaft during construction or drilling, typically at multiple depths or intervals.These probes serve as both transmitters and receivers of sonic waves.
• Signal Transmission: Sonic waves are transmitted through the probes into the pile shaft and detected by adjacent probes.The travel time and amplitude of the waves are recorded and analyzed to identify changes in concrete density or structural irregularities.
• Data Acquisition: Electronic data acquisition systems capture and process signals received from the sonic probes. Advanced signal analysis software interprets data to create a profile of concrete condition and detect anomalies.
• Analysis: Engineers analyze SBMT data to assess concrete integrity, identify potential defects (such as voids or poor concrete consolidation), and evaluate overall pile quality. Results inform decisions on structural safety and potential remediation measures.
• Reporting: A comprehensive SBMT report summarizes findings, including observations, interpretations, and recommendations for further investigation or corrective actions.

Advantages:

• Non-destructive method for assessing concrete integrity in deep foundations.
• Provides detailed insights into internal conditions without excavation or intrusive methods.
• Facilitates early detection of construction defects or material inconsistencies.

Applicable Area: SBMT is commonly applied in urban infrastructure projects, high-rise buildings, and industrial facilities where deep foundations are critical. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Advancements in probe technology and signal processing algorithms aim to enhance SBMT accuracy, reliability, and efficiency.

Standards: ASTM D5882/D5882M - Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations provides guidelines for conducting SBMT.

2. Plate Load Test (PLT):

The Plate Load Test (PLT) is a field test used to determine the ultimate bearing capacity of soil or the load-carrying capacity of shallow foundations. It involves applying a known load to a rigid plate placed on the ground surface or directly on a foundation to measure settlement under load.

Test Procedure:

• Plate Installation: A steel plate of standardized size is placed on the ground surface or directly on the foundation being tested. The plate is usually equipped with load cells or dial gauges to measure settlement.
• Load Application: Incremental loads are applied to the plate using hydraulic jacks or other loading mechanisms. Loads are increased gradually until the desired criteria, such as maximum settlement or failure load, are reached.
• Settlement Measurement: Settlement of the plate under each load increment is measured using displacement transducers, dial gauges, or electronic devices. Settlement data is recorded at regular intervals until stabilization or failure occurs.
• Analysis: Engineers analyze the load-settlement data to determine the ultimate bearing capacity of the soil or the load-carrying capacity of the foundation. Results help validate design assumptions and optimize foundation designs for stability and safety.
• Reporting: A comprehensive PLT report summarizes test procedures, observations, load-settlement curves, and conclusions drawn from the analysis. Recommendations may be provided for foundation design adjustments or additional testing if necessary.

Figure: Field Data Collection

Test Procedure:

• Instrumentation Setup: Sensors (accelerometers or geophones) are attached to the pile head. An impact device, such as a hand-held hammer or an automated system, induces a low-energy impact or signal.
• Signal Transmission: Impact waves propagate through the pile and are reflected back to sensors at the pile head. The reflected signals are recorded and analyzed for changes in wave characteristics, indicating potential defects or anomalies.
• Data Acquisition: Electronic data acquisition systems capture and process the signals received from sensors. Advanced signal processing algorithms filter noise and interpret data to assess pile integrity.
• Analysis: Engineers analyze PIT data to identify discontinuities, changes in cross-section, or other anomalies within the pile. Results inform decisions regarding pile acceptance criteria, structural safety, and potential remedial actions.

Reporting: A comprehensive PIT report summarizes test procedures, observations, data analysis, and conclusions. Recommendations may include further investigations or adjustments to pile construction or design.

Figure: Data collection for PIT

Results from Raw Data

Advantages:

• Non-destructive method for assessing pile integrity.
• Detects defects and anomalies without excavation or intrusive methods.
• Provides immediate results for on-site decision-making.

Applicable Area: PIT is essential for assessing driven and cast-in-situ piles in various construction projects, ensuring structural reliability and safety. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Continued advancements in signal processing and sensor technology aim to enhance PIT accuracy, reliability, and efficiency.

Standards: ASTM D5882/D5882M - Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations provides guidelines for conducting PIT.

2. High-Strain Dynamic Testing:

High-Strain Dynamic Testing (HSDT) evaluates the dynamic load capacity of piles by subjecting them to rapid, high-energy impacts or blows. This method assesses pile behavior under dynamic loads and provides insights into ultimate pile capacity and soil-structure interaction.

Test Procedure:

• Instrumentation Setup: Sensors (accelerometers or strain gauges) are installed on the pile to measure dynamic A drop hammer or impact device delivers rapid blows to the pile head.
• Load Application: Dynamic loads are applied to the pile head using the impact device. Sensors record acceleration, strain, and displacement responses during impact.
• Data Acquisition: Electronic data acquisition systems capture and process dynamic response data in real-time. Measurements include impact force, pile movement, and stress distribution.
• Analysis: Engineers analyze HSDT data to determine pile capacity under dynamic loading Dynamic load-displacement curves are plotted to assess pile resistance and behavior.
• Reporting: A detailed HSDT report summarizes test procedures, observed responses, data analysis, and conclusions. Recommendations may include adjustments to pile design or construction practices based on test results.

Advantages:

• Rapid assessment of pile capacity under dynamic conditions.
• Provides valuable data for evaluating pile performance in seismic-prone areas.
• Supports efficient design optimization and construction quality assurance.

Applicable Area: HSDT is crucial for infrastructure projects requiring dynamic load resistance, such as bridges, offshore structures, and industrial facilities. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Advancements in impact measurement techniques and data processing enhance HSDT accuracy and reliability in diverse soil conditions.

Standards: ASTM D4945/D4945M - Standard Test Method for High-Strain Dynamic Testing of Deep Foundations provides guidelines for conducting HSDT.

3. Rapid Load Testing:

Rapid Load Testing (RLT) evaluates the load-carrying capacity of piles or foundations by applying short-duration, high-intensity loads. It provides rapid assessment of pile behavior and performance under realistic load conditions.

Figure: Rapid Load Test

Test Procedure:

• Load Setup: Hydraulic jacks or reaction frames apply rapid, incremental loads to the pile. Load increments are carefully controlled to monitor pile response.
• Load Application: Loads are applied rapidly to the pile head until reaching maximum capacity or predefined criteria. Sensors measure settlement and deflection responses during load application.
• Data Acquisition: Electronic data acquisition systems capture and record load increments, settlement, and other relevant parameters. Real-time monitoring ensures accurate data collection for analysis.
• Analysis: Engineers analyze RLT data to determine ultimate pile capacity and load-displacement characteristics. Results validate design assumptions and assess pile performance under realistic loading scenarios.
• Reporting: A comprehensive RLT report summarizes test procedures, load-displacement curves, observations, and conclusions. Recommendations may include adjustments to pile design or construction methods based on test findings.

Advantages:

• Provides rapid assessment of pile capacity without prolonged testing periods.
• Mimics realistic loading conditions for accurate performance evaluation.
• Supports efficient decision-making in construction and foundation design.

Applicable Area: RLT is suitable for assessing bored piles, drilled shafts, and deep foundations in various infrastructure projects. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Advancements in load application systems and data analysis techniques enhance RLT precision and efficiency, supporting sustainable construction practices.

 Standards: ASTM D7383/D7383M - Standard Test Methods for Axial Compressive Force Pulse (Rapid) Testing of Deep Foundations provides guidelines for conducting RLT.

2. Static Load Testing (SLT): Compression, Tension, and Lateral Load Tests (LLT):

Static Load Testing assesses the load-carrying capacity and structural response of piles under sustained or gradually applied loads. It includes compression tests (axial loads), tension tests (uplift loads), and lateral load tests (horizontal loads), providing comprehensive data on pile behavior and performance.

Figure: Static Load Test

Test Procedure:

• Instrumentation Setup: Hydraulic jacks, reaction frames, or load cells apply controlled loads to the pile. Sensors (strain gauges, displacement transducers) measure pile response under different load directions.
• Load Application: Loads are applied gradually to the pile head in increments until reaching maximum capacity or predefined limits. Strain gauges or displacement transducers record pile deformations and settlements.
• Data Acquisition: Electronic data acquisition systems capture load increments, strain measurements, and settlement data. Continuous monitoring ensures accurate data collection for each test phase.
• Analysis: Engineers analyze static testing data to determine load-displacement curves, ultimate capacity, and pile stiffness. Results validate design calculations and assess pile behavior under varying loading conditions.
• Reporting: A detailed static load testing report summarizes test procedures, observed responses, data analysis, and conclusions. Recommendations may include adjustments to pile design or construction methods based on test outcomes.

Advantages:

• Provides comprehensive data on pile capacity and structural response.
• Essential for verifying design assumptions and ensuring structural safety.
• Supports optimization of foundation designs for stability and performance.

Applicable Area: Static testing is integral to major infrastructure projects, including high-rise buildings, bridges, and industrial facilities. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Advancements in sensor technology and data analysis enhance static testing accuracy, efficiency, and real-time monitoring capabilities.

Standards: Various ASTM standards apply depending on the specific test type (e.g., ASTM D1143/D1143M for compression testing).

2. Settlement Measurement by Displacement Transducer:

Settlement measurement by displacement transducer assesses vertical movements or settlements of piles or foundations over time. It provides critical data for monitoring long-term stability and performance of deep foundations.

Test Procedure:

• Transducer Installation: Displacement transducers are installed at strategic locations along the pile or foundation.Transducers are anchored to measure vertical movements accurately.
• Monitoring Setup: Transducers continuously monitor and record settlement data over specified monitoring periods. Measurements are collected at regular intervals to track settlement trends.
• Data Acquisition: Electronic data acquisition systems capture and store settlement measurements from displacement transducers. Real-time monitoring ensures timely detection of settlement variations.
• Analysis: Engineers analyze settlement data to assess foundation stability, soil consolidation, and potential settlement factors. Results inform decisions on structural monitoring, maintenance, or corrective actions.
• Reporting: A comprehensive settlement measurement report summarizes monitoring procedures, data trends, interpretations, and recommendations. Findings guide long-term foundation management strategies.

Advantages:

• Provides continuous monitoring of foundation settlements.
• Crucial for assessing long-term stability and performance.
• Supports proactive maintenance and timely intervention.

Applicable Area: Essential for infrastructure projects in areas prone to soil settlement or consolidation, such as coastal regions or expansive clay soils. In Bangladesh major client of this test are LGED, RHD, BBA, DMTCL, WASA, City Corporation, RAJUK, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Future Scopes: Integration with wireless data transmission and automated monitoring systems enhances real-time settlement monitoring capabilities.

Standards: ASTM D4546/D4546M - Standard Test Methods for One-Dimensional Swell or Settlement Potential of Cohesive Soils provides guidelines for settlement measurement techniques.

 Contributing to Smart Bangladesh Mission through Pile Load Testing:

Iconic Engineering Ltd., a leader in Bangladesh's construction sector, is poised to make substantial contributions to the nation's Digital Bangladesh vision through its cutting-edge pile load testing capabilities. These efforts not only bolster infrastructure reliability but also align seamlessly with Bangladesh's vision for leveraging digital technologies to drive socio-economic development.

Advanced Technological Integration:

 State-of-the-Art Equipment: Iconic Engineering Ltd. integrates advanced electronic data acquisition systems and precision instrumentation for comprehensive pile load testing. This technology ensures precise measurements and real-time data monitoring, essential for evaluating pile integrity and load-bearing capacity with accuracy.

Digital Data Management: By harnessing digital data acquisition and management systems, Iconic Engineering Ltd. enhances operational efficiency and transparency in pile testing processes. Real-time data availability facilitates informed decision-making and fosters seamless collaboration among project stakeholders.

Overcoming Operational Challenges:

 Commitment to Excellence: Iconic Engineering Ltd. prioritizes continuous workforce training and development to ensure proficiency in the latest pile testing methodologies. This strategic investment addresses skill gaps, enhances service quality, and meets client expectations consistently.

Adherence to International Standards: Upholding stringent international standards such as ASTM, EN, ACI, AASHTO, Iconic Engineering Ltd. guarantees that all pile testing procedures adhere to rigorous quality assurance measures. This commitment not only ensures reliability but also builds trust and credibility among clients.

Innovation and Future Readiness:

Digital Transformation Initiatives: Iconic Engineering Ltd. is at the forefront of digital transformation in pile testing, exploring AI-driven analytics and IoT-enabled sensors. These innovations optimize predictive maintenance capabilities, streamline operations, and support sustainable infrastructure development.

Collaboration for National Development: Aligning with Bangladesh's strategic infrastructure initiatives, Iconic Engineering Ltd. collaborates closely with government projects. This collaboration enhances innovation, fosters economic growth, and promotes sustainable construction practices nationwide. In Bangladesh major client of pile test are LGED, RHD, BBA, DMTCL, DNCC, DSCC, WASA, City Corporation, RAJUK, DPHE, CAAB, PWD, Bangladesh Railway Department and other private industry like construction company, consultancy company and ETP Contractor etc.

Conclusion:

Iconic Engineering Ltd. stands at the forefront of advancing pile load testing in Bangladesh, leveraging digital technologies to enhance infrastructure quality and contribute to the nation's development goals. Through continuous improvement, innovation, and strategic partnerships, Iconic Engineering Ltd. is well-positioned to overcome challenges and drive positive change in Bangladesh's construction industry. This approach not only ensures compliance with international standards but also promotes sustainable practices and fosters economic growth, ultimately contributing to a prosperous Digital Bangladesh.
